Sisic Burner Roller
Sisic Burner Roller

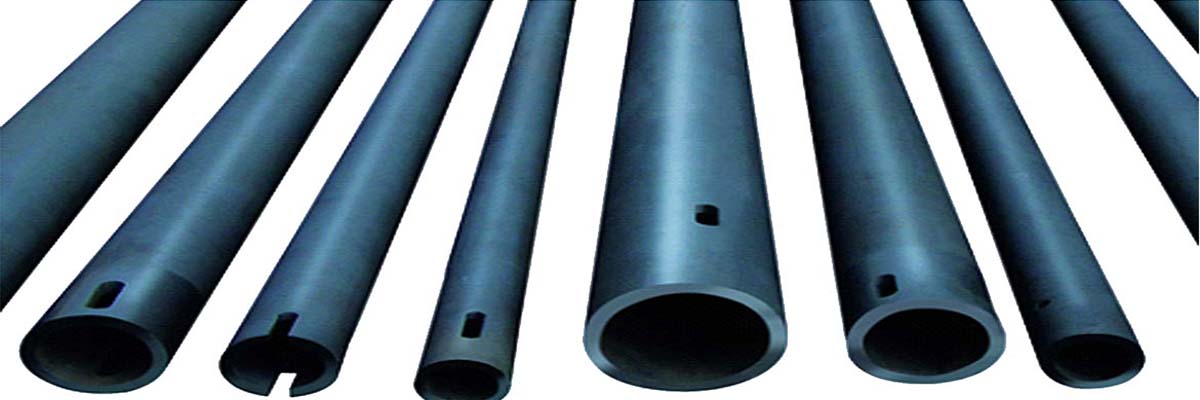

RBSiC (SiSiC) rollers are used for the high temperature sintering zone of roller hearth kilns. The rollers are the important kiln furniture for table wear porcelain, sanitarywear, construction ceramics, glasses and magnetic materials production, etc. AEON RBSiC (SiSiC) Rollers have higher bearing strength and there are no deformations even in very high temperature. The Rollers display 10-15 times operational life compared to Alumina Rollers
TYPICAL DATA OF CERAMIC ROLLERS
| Size of Section (mm) | Wall Thickness(mm) | Concentrated Loading (kg.m/L) | Uniformly Distributed Loading(kg.m/L) |
|---|---|---|---|
| 30 | 5 | 43 | 86 |
| 35 | 5 | 63 | 126 |
| 38 | 5 | 77 | 154 |
| 40 | 6 | 97 | 194 |
| 45 | 6 | 130 | 260 |
| 50 | 6 | 167 | 334 |
| 60 | 7 | 283 | 566 |
| 70 | 7 | 405 | 810 |
The Bending Strength of AEON RBSIC(SiSiC) Rollers is 250MP, safety coefficient is 5. Concentrated Loading =the Value in the Table Accordingly x 1/L, Uniformly Distributed Loading = the Value in the Table Accordingly x 1/L.
