Sisic Beam
Sisic Beam

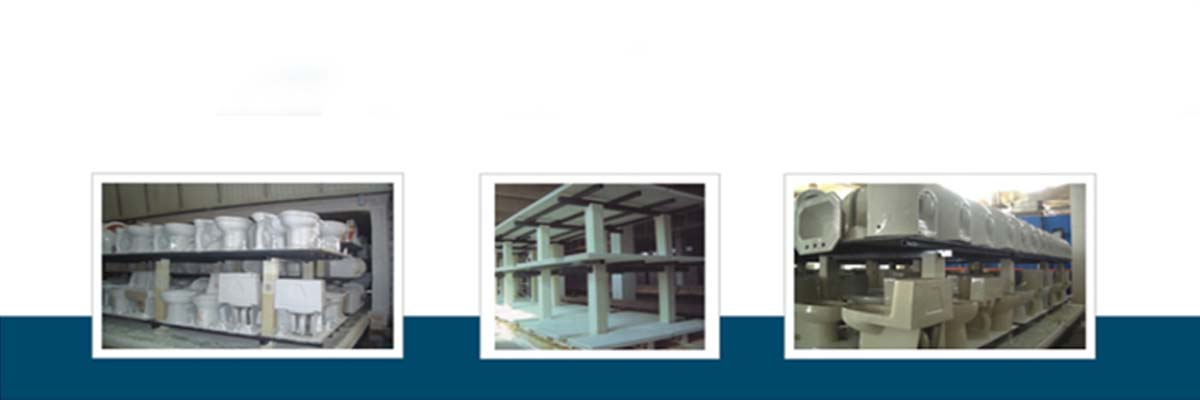

AEON'RBSiC (SiSiC) cross beams are used for the loading structure systems of tunnel kilns, shuttle kilns and many other industrial kilns. AEON'RBSiC (SiSiC) cross beams have higher strength and there are no deformations even in very high temperature. And also the beams display long operational life. The beams are the most suitable kiln furniture for sanitary wear and electrical porcelain applications. AEON'RBSiC (SiSiC) has excellent thermal conductivity, so it is available to save energy with less weight of the kiln car.
Technical Data of Aeon Silicon Carbide (SiC)
| ITEM | RBSIC (SISIC) | SSIC | |
|---|---|---|---|
| UNIT | DATA | DATA | |
| MAX TEMPERATURE OF APPLIC ATION | C | 1380 | 1600 |
| DENSITY | g/cm3 | >3.02 | >3.1 |
| OPEN POROSITY | % | <0.1 | <0.1 |
| BENDING STRENGTH | Mpa | 250(20c) | >400 |
| MPa | 280 (1200 C) | ||
| MODULUS OF ELASTICITY | Gpa | 330 (20c) | 420 |
| GPa | 300 (1200c) | ||
| THERMAL CONDUCTIVITY | W/m.k | 45 (1200 c) | 74 |
| COEFFICIENT OF THERMAL EXPANSION | K x 10 | 4.5 | 4.1 |
| VICKERS HARDNESS HV | Gpa | 20 | 22 |
| ACID ALKALINE - PROFF | Excellent | Excellent |
The values quoted whre the typical result from test parts, not the promised exactly data applied to the orders
